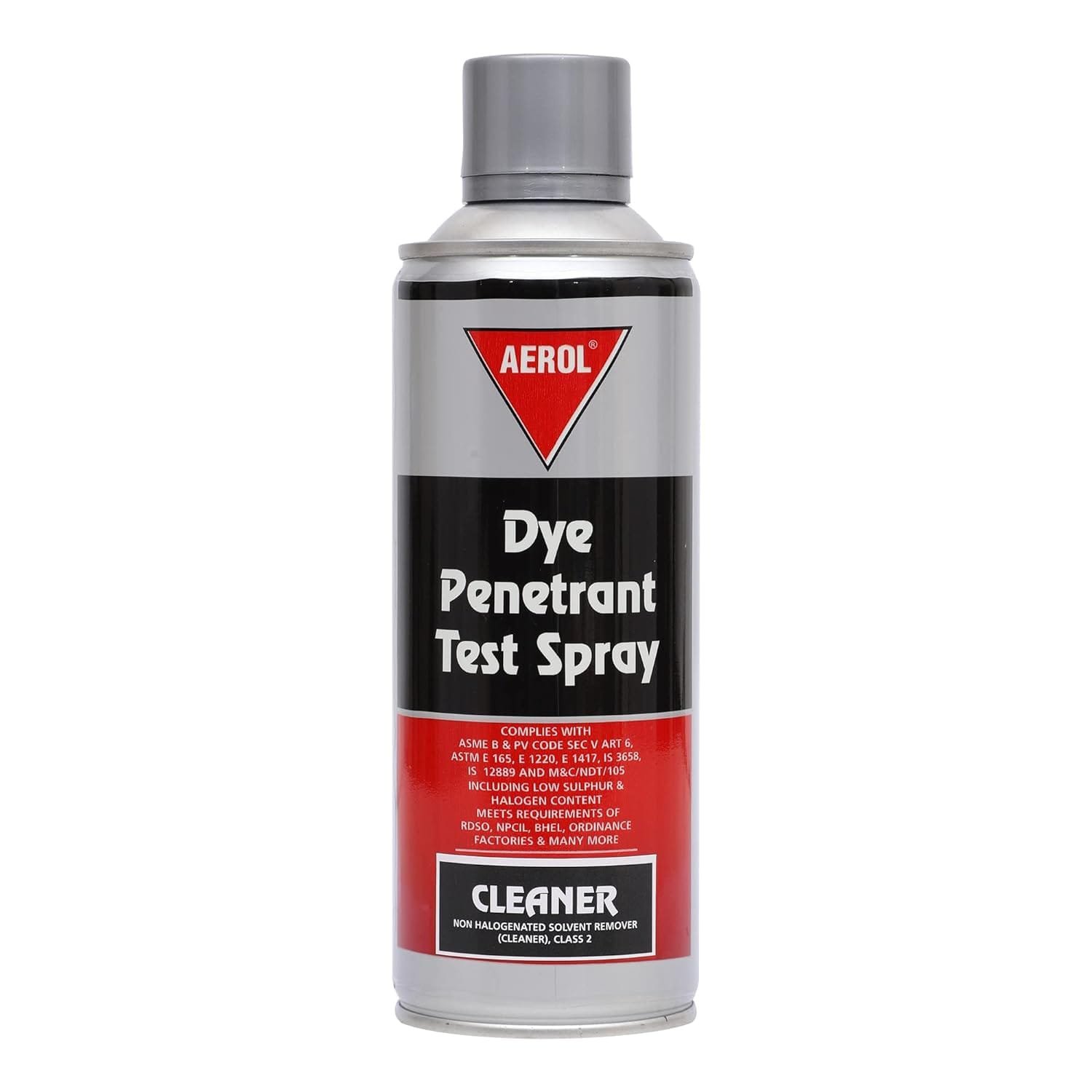

Dye Penetrant Test Spray & Fluids - Image 2

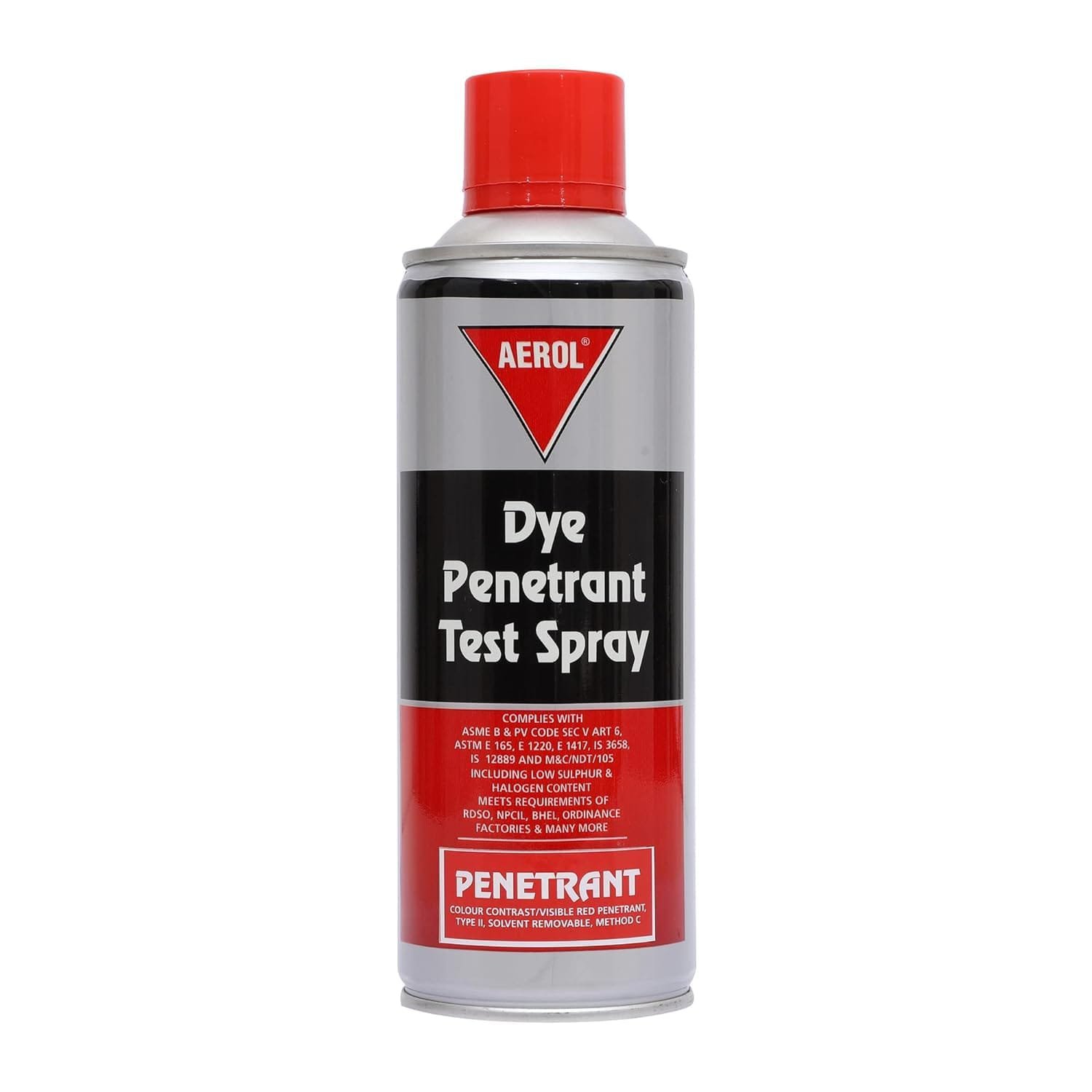

Dye Penetrant Test Spray & Fluids - Image 3
Dye Penetrant Test Spray & Fluids - Image 4
Dye Penetrant Test Spray & Fluids - Image 5
Dye Penetrant Test Spray & Fluids - Image 6
Dye Penetrant Test Spray & Fluids - Image 7
Dye Penetrant Test Spray & Fluids - Image 8

Dye Penetrant Test Spray & Fluids

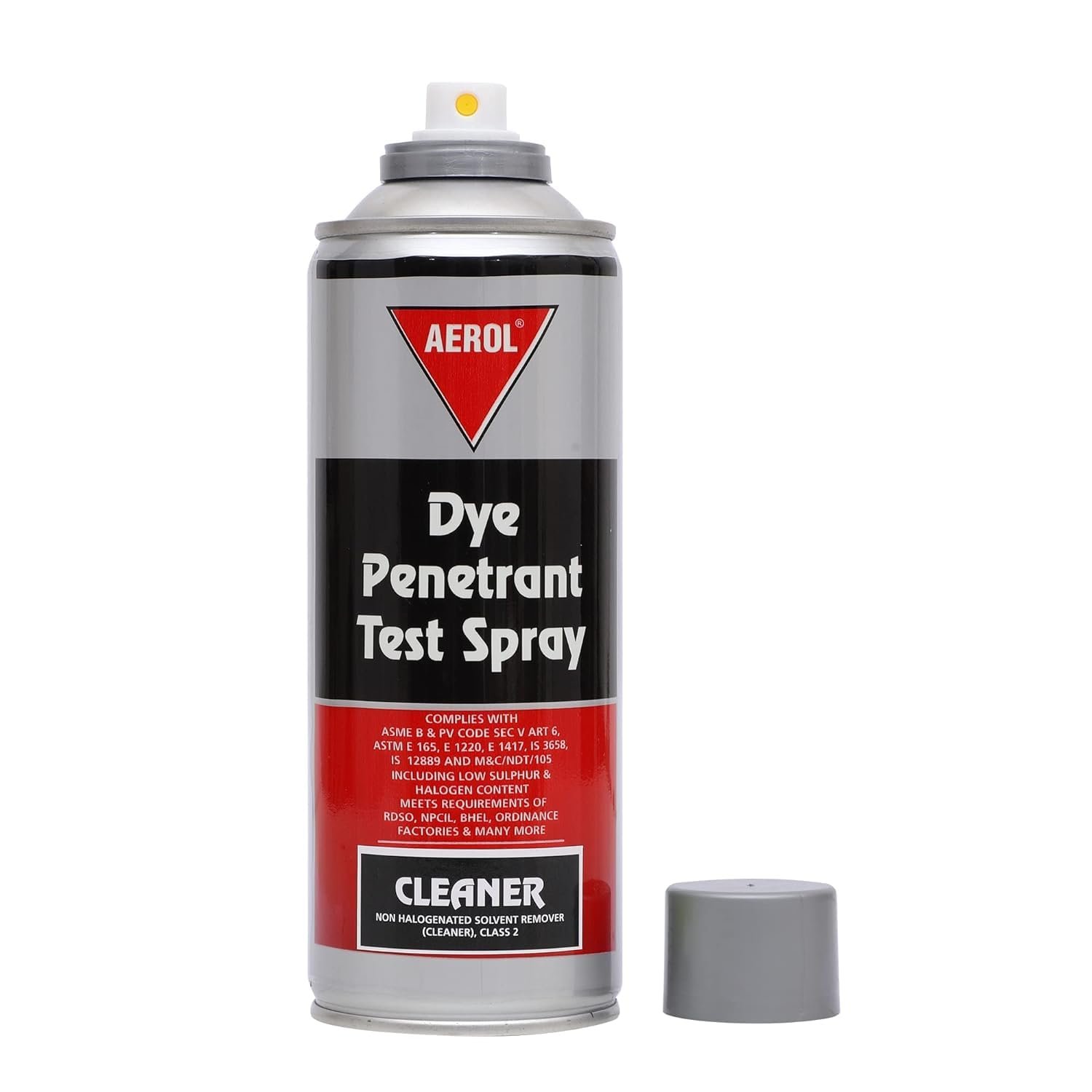

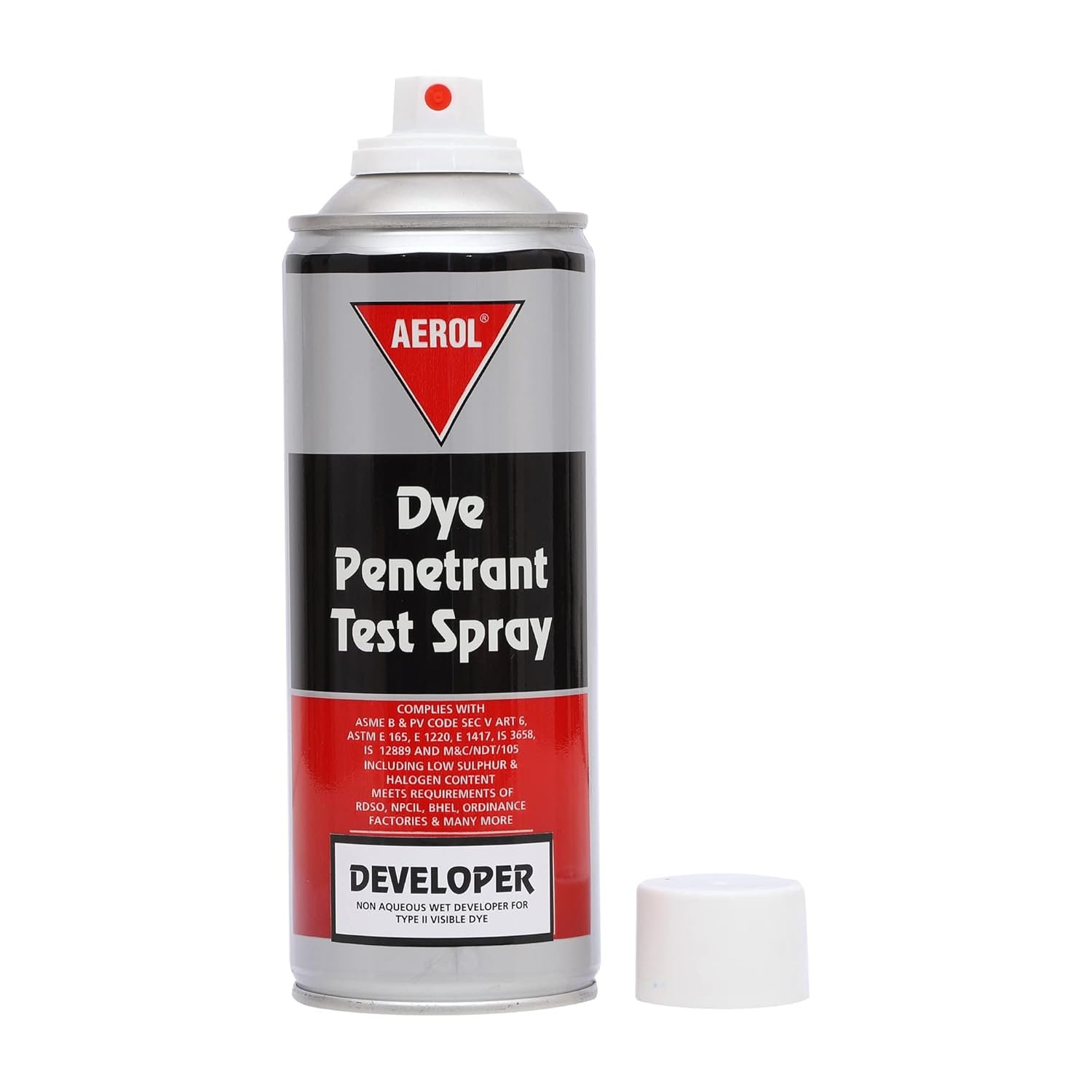

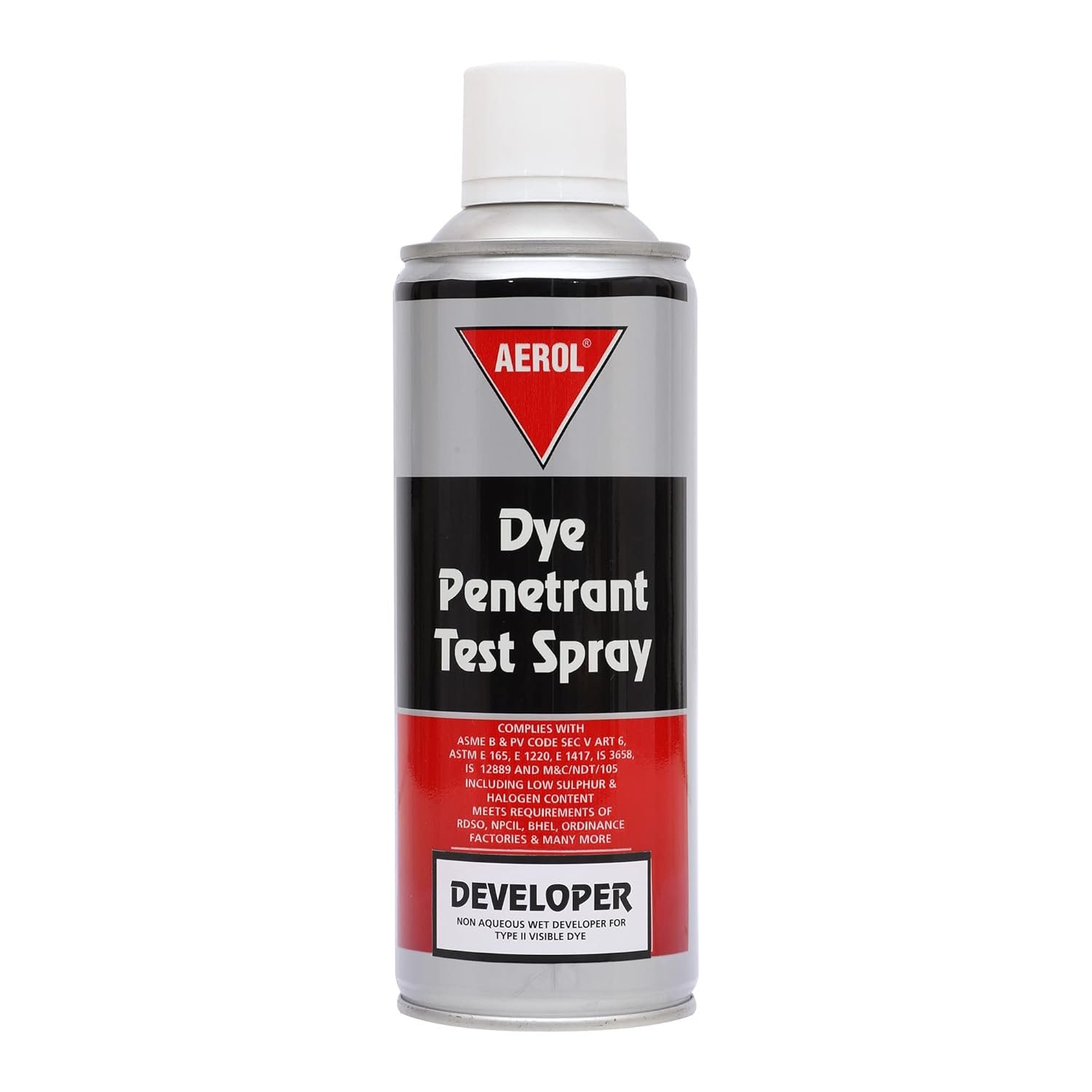

Aerol® Dye Penetrant Test Spray is available as a 3-part system for quick and easy visual detection of flaws and cracks. Each set consists of a Penetrant Spray, a Cleaner Spray, and a Developer Spray. The Cleaner is a powerful, quick-drying, designed to clean/degrease the substrate and also to remove the excess penetrant. The Developer is a white coating that contrasts with the Penetrant to highlight the flaw. The Penetrant Spray is a red dye solution that penetrates into even the tiniest defect or crack

+919810072294
Category:

Description

Applications

Suitable for use throughout the industry in areas such as Automotive, Welding, Engineering, Construction, Shipbuilding, and Machining. It reduces the need for immersion tanks or electrical detection equipment. It is ideal for use during welding, repairs, and general maintenance.

Grade Description Net Contents
9910 Red penetrant 280, 400 ml, 1,5 & 20L
9920 Developer 280, 400 ml, 1,5 & 20L
9930 Solvent Cleaner 280, 400 ml, 1,5 & 20L

Key Features

  • Meets requirements of IS 3658, IS 12889, ASME B & PV Code Sec V, ASTM E 165, E 1220, and E 1417 for: Colour Contrast/Visible Red Type II Method C Solvent Removable Penetrant Non-Aqueous Wet Developer Non-Halogenated Class II Solvent Cleaner (Remover) for Type II Method C Visible Dye Penetrant
  • Meets RDSO Specification No. M&C/NDT/105/2001 for Indian Railways.
  • Sulphur content, Chlorine, and fluorine content are below 0.1% (on residue) and below 25ppm in compliance with the prescribed standards mentioned above.
  • Non-corrosive to most metals.
  • Meets requirements of Sensitivity Level #2 as per ISO 3452. Passes Ni-Cr Panel test of 30 & 50 microns.
  • CFC free. Does not contain ozone-depleting substances.
